IEC 60695-2-10 Glow Wire Test Flammability Testing Apparatus

Brand Name : Gold

Model Number : GD-IEC60695

Certification : ISO

Place of Origin : China

MOQ : 1

Price : negotiation

Payment Terms : D/A,D/P,L/C,T/T,,MoneyGram

Supply Ability : 1 month

Delivery Time : 30 day

Packaging Details : plywood box

Name : Glow Wire Test Flammability Testing Apparatus

Standard : IEC 60695-2-10

Size : W1200xD600xH1260

weight : 50kg

Volume : 0.55 m3

power supply : AC220V ± 10%/50Hz (other power specifications can be customized)

Contact Now

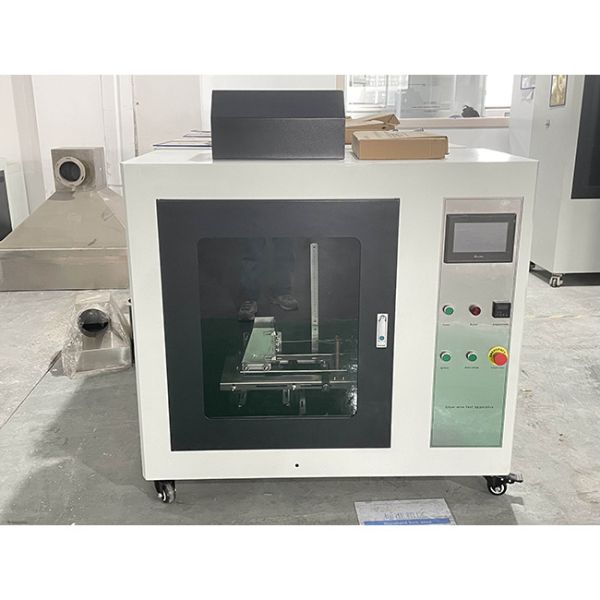

IEC 60695-2-10 Glow Wire Test Flammability Testing Apparatus
The Glow Wire Tester is a professional fire hazard testing device designed to evaluate the fire resistance of solid insulating materials in electrical and electronic products. This equipment simulates thermal stress from overheated components to test ignition risk, flame propagation, and self-extinguishing capabilities.
IEC 60695-2-10 Glow Wire Test Flammability Testing Apparatus
Compliance Standards
  • IEC 60695-2-10: Glow-wire apparatus and common test procedure
  • IEC 60695-2-11: Glow-wire flammability test method for end products (GWEPT)
  • IEC 60695-2-12: Glow-wire flammability index (GWFI) test method for materials
  • IEC 60695-2-13: Glow-wire ignition temperature (GWIT) test method for materials
Applications
  • Household Appliances: Washing machines, refrigerators, microwave ovens, electric kettles, vacuum cleaners
  • Lighting Equipment: LED lamps, fluorescent lamps, lamp holders, switches
  • Information Technology Equipment: Computers, monitors, printers, mobile phone chargers
  • Low-Voltage Electrical Appliances: Plugs, sockets, switches, circuit breakers, relays
  • Power Tools: Electric drills, electric saws, handheld tool components
  • Consumer Electronics: Televisions, audio equipment, headphones, game consoles
  • Specific Components: Plastic housings, circuit board insulation, cable sheaths, connectors
Technical Specifications
Heating Element Nickel-chromium wire (77% Ni/20 ± 1% Cr) with annealing treatment
Temperature Range 500~1000°C, digitally adjustable
Temperature Tolerance ±3°C (500~1000°C)
Temperature Sensors 1mmK imported armored thermocouples (OMEGA brand)
Glow-wire Pressure 0.95N ± 0.1N, adjustable range 0.8N~1.2N
Timing Range 0~99 seconds adjustable
Time Error ±1 second
Ignited Bedding Layer 10mm white pine board with standard silk paper covering
Control System PLC touch screen with automatic temperature compensation
Power Supply AC220V ± 10%/50Hz (customizable)
Observation Large plastic glass window for easy sample observation
