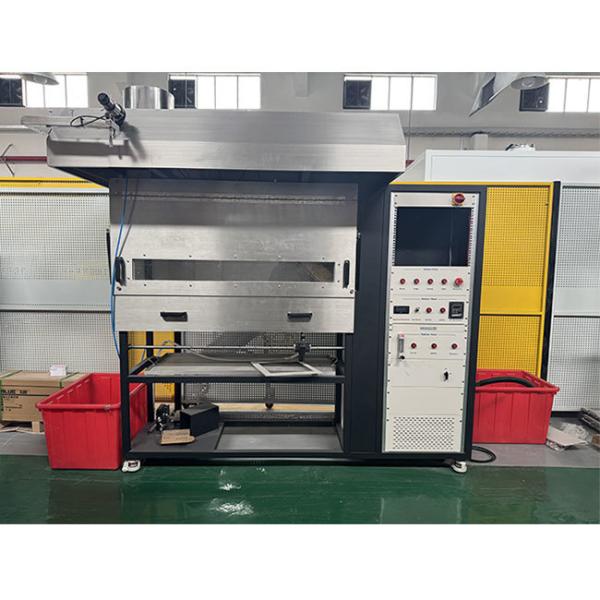

ISO 9239 Flooring Radiant Panel Fire Resistance Test Apparatus

Brand Name : Gold

Model Number : GD-ISO9239

Certification : ISO

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : L/C,D/A,D/P,,T/T,MoneyGram

Supply Ability : 1 pcs per 45 days

Delivery Time : 45days

Packaging Details : plywood box

Name : ISO 9239 Flooring Radiant Panel Test Apparatus

Standard : ISO 9239

Test Chamber Dimensions : 1800 (L) x 1500 (W) x 2400 (H)

Electrical Control Cabinet Dimensions : 600 (L) x 1000 (W) x 1800 (H)

Exhaust System Requirements : Exhaust duct diameter: 30 cm, air velocity: 2.5 m/s, height from ground: 2.4 m.

Control : Smart control with English

Contact Now

ISO 9239 Flooring Radiant Panel Test Apparatus for Fire Resistance Testing of Building Materials
ISO 9239 Flooring Radiant Panel Fire Resistance Test Apparatus
Product Overview

The ISO 9239-1 Flooring Radiant Panel Test Apparatus is a state-of-the-art device designed for evaluating the fire resistance and burning behavior of flooring materials, including textile carpets, wood flooring, rubber flooring, and plastic coverings. Compliant with international standards, this advanced testing machine measures critical radiant flux, flame spread, and smoke generation under controlled radiant heat conditions.

Key Attributes
Attribute Value
Name ISO 9239 Flooring Radiant Panel Test Apparatus
Standard ISO 9239
Test Chamber Dimensions 1800 (L) x 1500 (W) x 2400 (H) mm
Electrical Control Cabinet Dimensions 600 (L) x 1000 (W) x 1800 (H) mm
Exhaust System Requirements Exhaust duct diameter: 30 cm, air velocity: 2.5 m/s, height from ground: 2.4 m
Control Smart control with English interface
Compliance Standards
  • ISO 9239-1:2010 - Reaction to fire tests for floorings
  • ISO 9239-2: Reaction to fire tests for floorings
  • ASTM E648: Standard Test Method for Critical Radiant Flux
  • ASTM E970: Standard Test Method for Critical Radiant Flux
  • NFPA 253: Standard Method of Test for Critical Radiant Flux
  • GB/T 11785: Determination of burning properties
Applications

This testing apparatus is suitable for evaluating the flammability and flame spread characteristics of various flooring materials:

  • Textile carpets
  • Cork and wood flooring
  • Rubber flooring and plastic coverings
  • Cellulose insulation flooring materials
  • Composite flooring materials
  • Horizontal surfaces in rail vehicle interiors (per EN 45545-2)
Technical Features
  • Stainless steel test chamber with front-opening door for easy cleaning
  • Calcium silicate board interior walls for high-temperature resistance
  • 300mm x 450mm porous ceramic heat radiant plate at 30-degree angle
  • T-shaped porous burner with cylinder-driven mechanism
  • Optical system with 2900 ± 100 K color temperature incandescent lamp
  • Computer-controlled shutter system for calibration
  • Digital gas flow control with mass flowmeter
  • SB water-cooled heat flow meter (0-50 kW/m² range)
  • 15-inch industrial touchscreen computer for test monitoring
Specifications
Dimensions: 2440 x 1220 x 2100 mm
Weight: 605 kg
Power supply: 220 V, 10 Amps
Operating temperature: 10°C to 35°C
Assist gas: Compressor gas
Combustion gas: Methane
